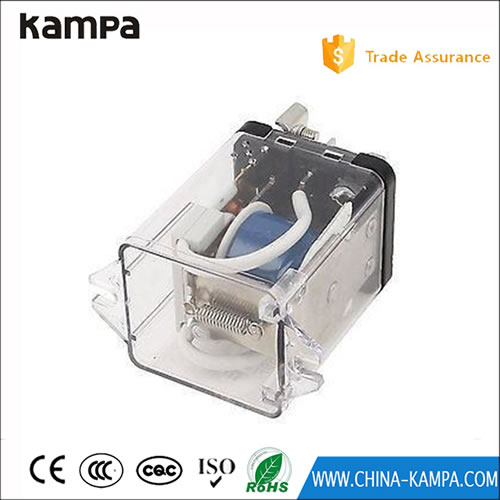

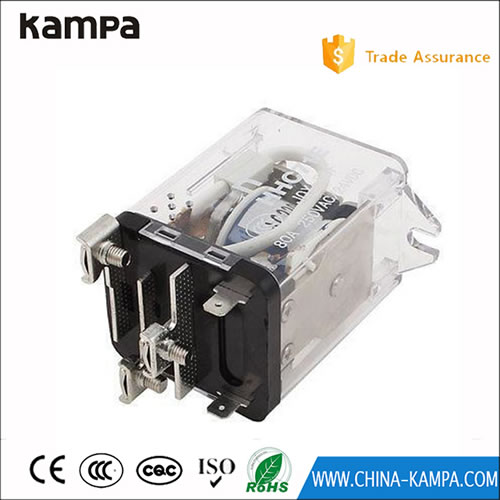

Power Relay JQX-59F HHC71E
Specification
| Contact Ratings | 1C,1A,1B |
| Contact Resistance | 100mΩ (1A 6VDC) |
| Contact Material | AgCdo |
| Contact capacity | 80A 250VAC 30VDC |
| Insulation Resistance | 1000MΩ, 500VDC |
| Dielectric Strength | BCC2500VAC 1minute |
| BOC1200VAC 1minute | |
| Operate Time | 25ms /25ms |
| Terminal Type | Screw |
| Nominal Coil Power | DC3.6W AC4.4VA |
Coil Versions
| Nominal Voltage VDC | Pull-in Voltage VDC | Release Voltage VDC | Coil Resistance Ω:±10% |
| 6 | 4.8 | 0.6 | 10 |
| 12 | 9.6 | 1.2 | 40 |
| 24 | 19.2 | 2.4 | 160 |
| 48 | 38.4 | 4.8 | 640 |
| 60 | 48 | 10 | 2800 |
| 110 | 88 | 11 | 9650 |
| Nominal Voltage VAC | Pull-in Voltage VAC | Release Voltage VAC | Coil Resistance Ω:±10% |
| 6 | 4.8 | 1.8 | 8.27 |
| 12 | 9.6 | 3.6 | 32.7 |
| 24 | 19.2 | 7.2 | 130 |
| 48 | 38.4 | 14.4 | 523.6 |
| 110 | 88 | 36 | 2750 |
| 220/240 | 176 | 72 | 11000/13090 |
