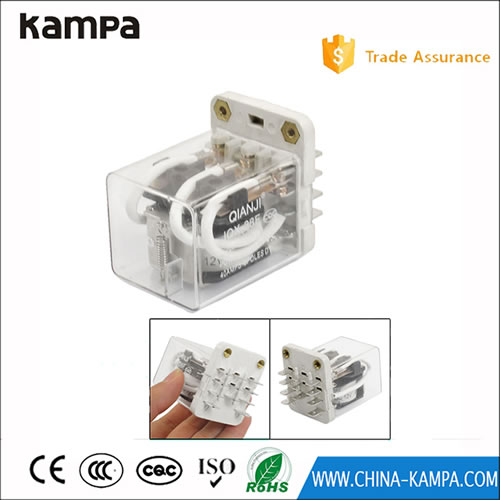

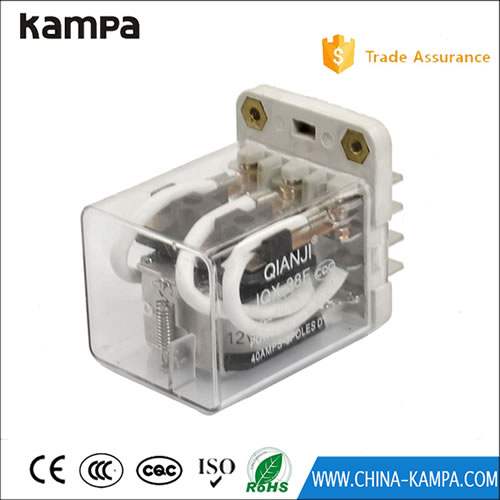

Power Relay JQX-38F HHC71B
Technique parameter
| Contact Ratings | ||
| Contact Ratings | 2Z, 2H, 2D | 3Z, 3H, 3D |
| Contact Resistance | 100mΩ(1A 6VDC) | |
| Contact Material | AgCdO | |
| Contact Capacity | 40A 250VAC/30VDC | 40A 250VAC/30VDC |
| Specification | ||
| Insulation Resistance | 1000MΩ. 500VDC | |
| Dielectric Strength | BCC 1200V 1min | |
| BOC 2500V 1min | ||
| Operate Time | 25ms/15ms | |
| Terminal Type | PCB | |
| Coil Ratings | ||
| Nominal Coil Power | DC2W~2.5W AC4.5W | |
Coil Versions
| Nominal voltage VDC | Pull-in voltage VDC | Release voltage VDC | Coil Resistance Ω:±10% |
| 12 | 8.4 | 1.2 | 57 |
| 24 | 16.8 | 2.4 | 230 |
| 48 | 33.6 | 4.8 | 2000 |
| 60 | 42 | 6 | 2850 |
| Nominal voltage VAC | Pull-in voltage VAC | Release voltage VAC | Coil Resistance Ω:±10% |
| 12 | 9.6 | 3.6 | 10 |
| 24 | 19.2 | 7.2 | 40.3 |
| 110 | 88.6 | 36 | 847 |
| 220/240 | 176 | 72 | 3380 |
