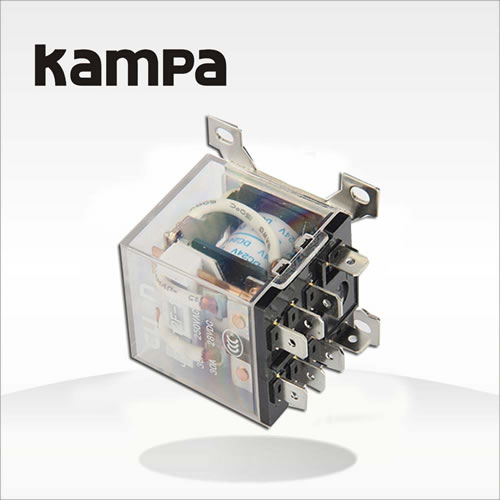

Specification
| Dimension | 40mm*40mm*40mm | ||
| Contact | Contact form | 1Z.1H.1D | 2Z,2H,2D |
| Rated load | 20A | 30A | |
| Max switching voltage | 240VAC/28VDC | ||
| Contact resistance | ≤100mΩ | ||
| Material | Sliver alloy | ||
| Electrical life | ≥100000 | ||
| Mechanical life | ≥1000000 | ||
| Max allowed voltage | DC≤75%x rated voltage | ||
| Release voltage | AC≤60%xrated voltage | ||
| Nominal voltage | DC | 6V~220V | |
| AC | 6V~380V | ||
| Coil voltage | DC | DC:2.0W | |
| AC | AC:4VA | ||
| Operate time | ≤25ms | ||
| Release time | ≤15ms | ||
| Insulation resistance | >100mΩ(500VDC) | ||
| Ambient temperature | -25~5℃ | ||
| Ambient Humidity | 45%~75%RH | ||
| Weight | 70g/150PCS/CTN/12.5KG/CTN | ||
