Molded Case Circuit Breakers Manufacturer
Datetime: 10/12/2019 3:34:00 PM Visit: 1307
Company Profile
Yueqing Kangpa Electric Co., Ltd. was established in 2009, covering an area of 12,000 square meters.Our company is the electric and electronic expert. And we can offer more than 600 kinds of distributing and controlling system products.Kampa CREAT in 2010. It is specialized in producing Circuit breaker and Distribution box. It has ISO9001, 5S system and advantage technology equipment.
Our company is the electric and electronic expert. And we can offer more than 600kinds of distributing and controlling system products.
phone：+86 137 5778 6841
product description

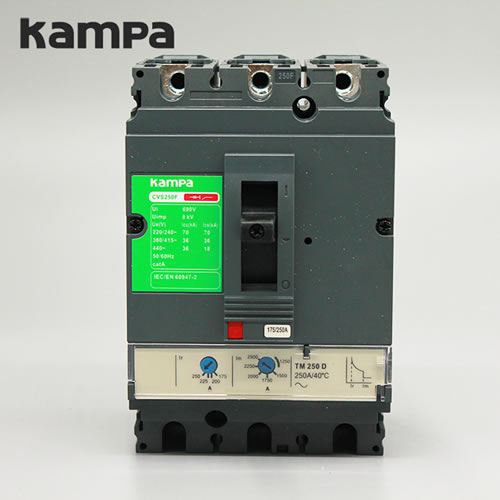

Molded Case Circuit Breakers CVS-250
Application
The design of CVS series of MCCB(shorted as circuit breaker) reflects the latest current limiting principle and manufacturing technology, characterized by compact structure, full modularization, high breaking, and zero arcover. Its rated insulation voltage is 750V, rated operating voltage is AC50/60Hz, 690V and below, rated working current up to 630A. It’s used for generating infrequent conversion and infrequent startup of the motor. Circuit breaking is equipped with overload, short circuit and under voltage protection devices, so as to protect the circuit and E type compact power equipments from damage.
Specification
| Item No. | CVS100E | CVS100/160/250 | |
| Number of poles: | 3P | 3P | |
| Control | Manual | with toggle | |
| with direct or extended rotary handle | |||
| Connections | Fixed | front connections | |
| Plug-in | front conections/rear connections | ||
| Rated current(A) | In | 100A | 100A,160A,250A |
| Rated operating voltage(V) | Ue | 50/60Hz, 440V | |
| Rated insulation voltage(V) | Ui | 690V | |
| Rated impulse withstand voltage(kV) | Uimp | 6kV | 8kV |
| Utilization category | A | ||
| Operation performance | Mechanical | 10000 | 8500 |
| Electrical | 2000 | 1500 | |
| Dimensions(mm) W X H X D | 75 X 130 X 60 | 105 X 161 X 86 |

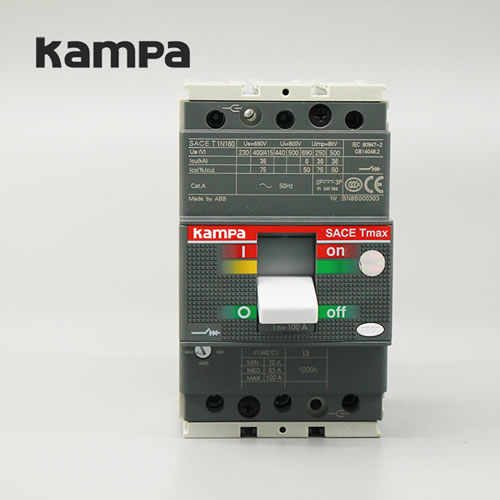

Molded Case Circuit Breakers Tmax 100 3P
Application
- Suitable for industrial or commercial power and lighting with AC 50/60Hz,rated working voltage up to AC600V, rated current up to 630A.
- Its a kind of economical breaker with the characters of stable and reliable function,beautiful appearance, small size and long life.It can be used for conversion of line and infrequent starting motor.
- It can also be attached to install the accessories which have protection function for avoiding loss-voltage, undervoltage.
- The product can install connection line with front board and back board,it also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance.
- It complies with standard of IEC947-2.
Specification
| Type | T1-100 | T1-160 | T3-250 | T5-400 | T5-630 | T6-800 |
| Pole nunmber | 1,3 | 3 | 3 | 3 | 3 | 3 |
| Rated current ln(A) | 25,32,40,50,60,80, 100 | 125160 | 160200250 | 300400 | 500630 | 700800 |
| Rated insulation voltage Ui(V) | AC500 | AC660 | AC660 | AC660 | AC660 | AC660 |
| Utilisation category | A | A | A | A | A | A |
| Rated ultimate short-circuit breaking capacity lcu(KA) at 415V | 25 | 65 | 65 | 65 | 65 | 65 |
| Rated short-circuit service breaking capacity lcs(%lcu)at 415V | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
