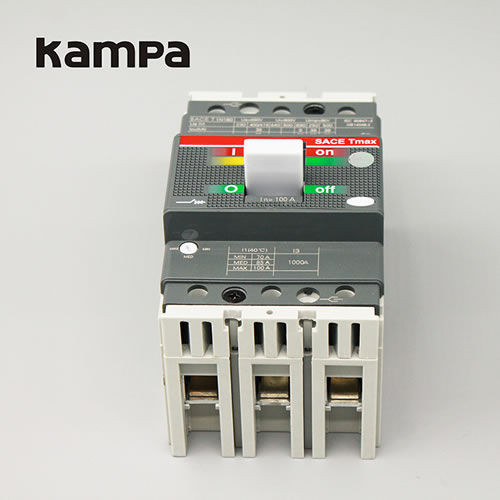

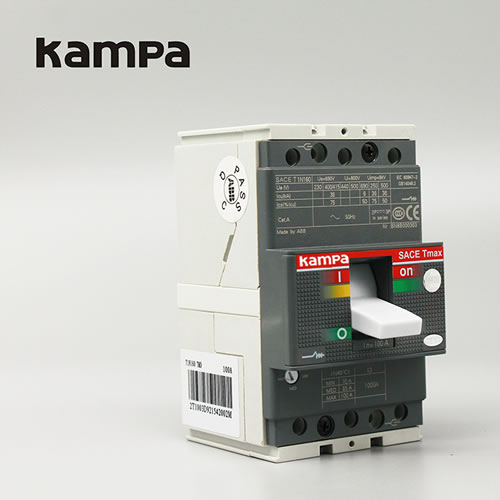

Molded Case Circuit Breakers Tmax 100 3P

Molded Case Circuit Breakers Tmax 100 3P

Application ? Suitable for industrial or commercial power and lighting with AC 50/60Hz,rated working voltage up to AC600V, rated current up

Tel : +86 577 62729846
Contacts : Wendy Dong
Product Details

Application

? Suitable for industrial or commercial power and lighting with AC 50/60Hz,rated working voltage up to AC600V, rated current up to 630A.
? Its a kind of economical breaker with the characters of stable and reliable function,beautiful appearance, small size and long life.It  can be used for conversion of line and infrequent starting motor.
? It can also be attached to install the accessories which have protection function for avoiding loss-voltage,  undervoltage.
? The product can install connection line with front board and back board,it also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance.
? It complies with standard of IEC947-2.

Specification

Type T1-100 T1-160 T3-250 T5-400 T5-630 T6-800 T7-1250 T7-1600
Pole nunmber 1,3 3 3 3 3 3 3 3
Rated current ln(A) 25,32,40,50,60,80, 100 125,160 160,200,250 300,400 500,630 700,800 10,001,250 1600
Rated insulation voltage Ui(V) AC500 AC660 AC660 AC660 AC660 AC660 AC660 AC660
Utilisation category A A A A A A A A
Rated ultimate short-circuit breaking capacity lcu(KA) at 415V 25 65 65 65 65 65 65 65
Rated short-circuit service breaking capacity lcs(%lcu)at 415V 75% 75% 75% 75% 75% 75% 75% 75%
