product description

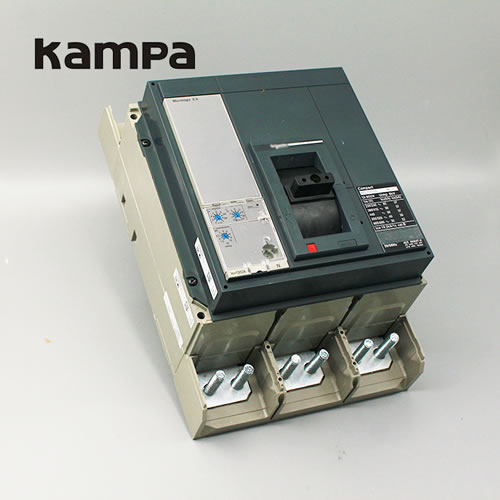

Molded Case Circuit Breakers NS-1000 3P

Molded Case Circuit Breakers Supplier_Molded Case Circuit Breakers

Application

Compact NS is a range of molded case circuit breakers (MCCB) with embedded Micrologic control units for built-in power & energy metering. The solution covers ratings from 630 to 1600 A.

Specification

Item No.   NS800-1600
umber of poles:   3P 4P
Control Manual

Connections Fixed
  Plug-in
Electrical characteristics as per IEC60947-2 and EN60947-2
Rated current(A) In 800, 1000,1250,1600
Rated operating voltage(V) Ue
Rated insulation voltage(V)  Ui
Rated impulse withstand voltage(kV) Uimp
Utilization category
Operation performance Mechanical 10000
  Electrical 5000
Indication and control auxiliaries
Auxiliary switch
MX shunt coil
MN under voltage coil
Dimensions(mm)   210 X 327 X 147 280 X 327 X 147
W X H X D

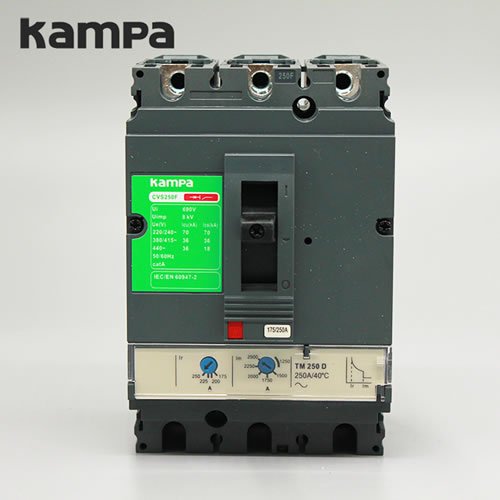

Molded Case Circuit Breakers CVS-250

Molded Case Circuit Breakers Supplier_Molded Case Circuit Breakers

Application

The design of CVS series of MCCB(shorted as circuit breaker) reflects the latest current limiting principle and manufacturing technology, characterized by compact structure, full modularization, high breaking, and zero arcover. Its rated insulation voltage is 750V, rated operating voltage is AC50/60Hz, 690V and below, rated working current up to 630A. It’s used for generating infrequent conversion and infrequent startup of the motor. Circuit breaking is equipped with overload, short circuit and under voltage protection devices, so as to protect the circuit and E type compact power equipments from damage.

Specification

Item No.   CVS100E CVS100/160/250   CVS400/630
Number of poles:   3P 3P 4P 3P
Control Manual with toggle
    with direct or extended rotary handle
Connections Fixed front connections
  Plug-in front conections/rear connections
Rated current(A) In 100A 100A,160A,250A   400A,630A
Rated operating voltage(V) Ue 50/60Hz, 440V
Rated insulation voltage(V) Ui 690V
Rated impulse withstand voltage(kV) Uimp 6kV 8kV
Utilization category   A
Operation performance Mechanical 10000 8500   6000
  Electrical 2000 1500   1000
Dimensions(mm) W X H X D   75 X 130 X 60 105 X 161 X 86 140 X 161 X 86 140 X 255 X 110
