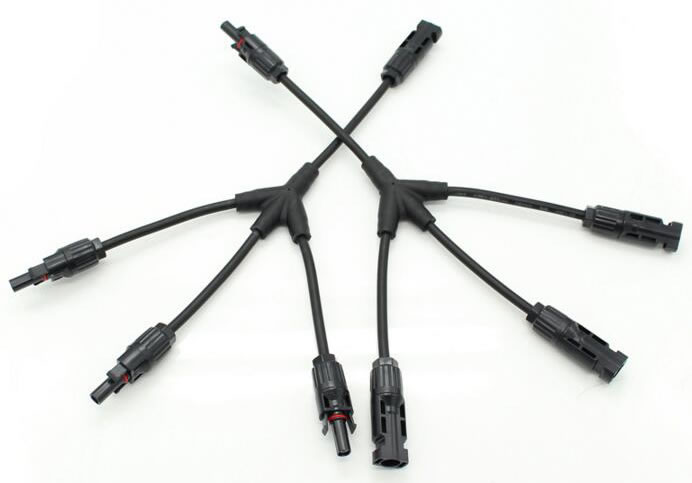

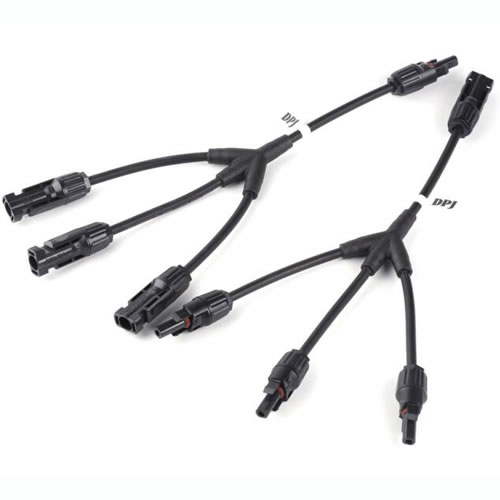

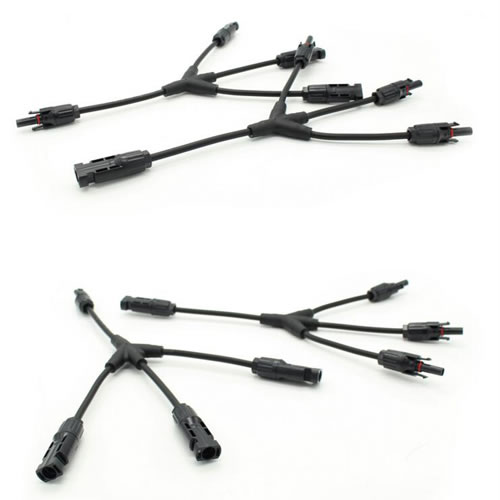

Description:
- l set include 4 male and 1 female or 1 male and 4 female connector cables
- main cable is 6mm2,the branch cable is 4mm2
- this photovoltaic branch connector set is the perfect solution to link any number of solar panel
- with the capacity of anti-aging and resistance to ultraviolet radiation on the out cover
- the length of cable with connector are depend on the customer need it
- with convenient installation, strong commonality
- to meet the using requirement under bad outdoor condition
Specification:
| Rate voltage | 1000V |
| Main cable square | 4mm2(12AWG) |
| Branch cable square | 4mm2(12AWG) |
| gender | FFFFM/MMMMF |
| Rate current | 30A |
| Contact resistance | under 5mΩ |
| Wire size range | 4/6mm2 |
| Protection degree | IP67 |
| Operating temperature | -40°C...+85°C |
| Insulation material | ppo |
| Contact material | Copper,Tin plated |
| Unmating force | 200 Newton |
| Locking system | Snap in |
