ZR011

ZR011

The ZR 011 houses two separate thermostats, allowing the independent control of heating and cooling or other equipment. Thermost

Tel : +86 577 62729846
Contacts : Wendy Dong
Product Details

The ZR 011 houses two separate thermostats, allowing the independent control of heating and cooling or other equipment.
Thermostat NC (normally closed): Thermostat opens at temperature rise - for regulating heaters or for switching signal devices. Comes with redtemperature dial.
Thermostat NO (normally open): Thermostat closes at temperature rise - for regulating filter fans and heat exchangers or for switching signal devices. Comes with blue temperature dial.

Technical Date

Switch temperature difference 7K (± 4K tolerance)
Sensor element thermostatic bimetal
Contact type snap-action contact
Service life > 100 000 cycles
Max. switching capacity 250VAC, 10 (2) A
  120VAC, 15 (2) A
  DC 30W
Connection 4-pole terminal, clamping torque 0.5Nm max.:
  rigid wire 2.5mm2,
  stranded wire (with wire end ferrule) 1.5mm2
Mounting clip for 35mm DIN rail, EN60715
Casing plastic according to UL94 V-0. light grey
Dimensions 67 x 50 x 46mm
Weight approx. 90g
Fitting position variable
Operating/Storage temperature -45 to +80°C (-49 to +176°F)
Operating / Storage humidity max. 90 % RH (non-condensing)
Protection type IP20
Approvals CE

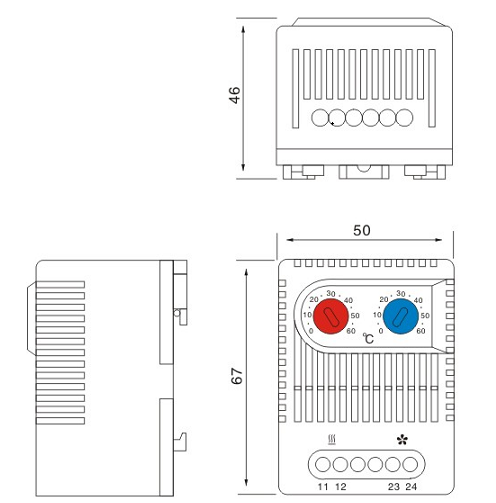

Dimension

Wiring diagram
