Adjustable relative humidity
Change-over contact
High switching capacity
Easily accessible terminals
Clip fixing
Technical Data
Switch difference* | 4% RH (±3% tolerance) |
Permissible air velocity | 15m/sec |
Contact type | change-over contact |
Service life | > 50,000 cycles |
Min. switching capacity | 20V AC/DC 100 mA |
Max. switching capacity | 25VAC, 5A |
DC 20W | |

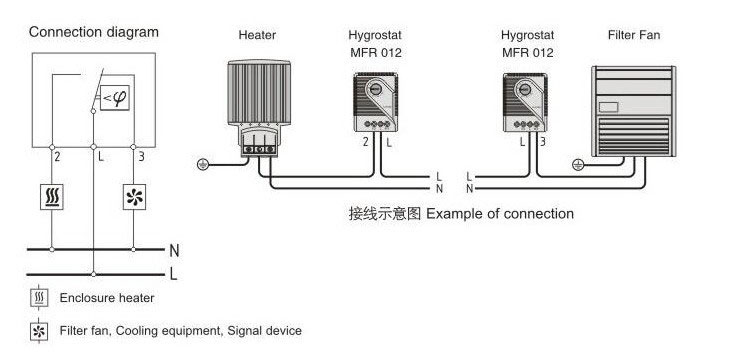

Connection | 3-pole terminal for 2.5mm2, clamping torque 0.5Nm max.: rigid wire 2.5mm2, stranded wire (with wire end ferrule) 1.5mm2 |
Mounting | clip for 35mm DIN rail, EN60715 |
Casing | plastic according to UL94 V-0, light grey |

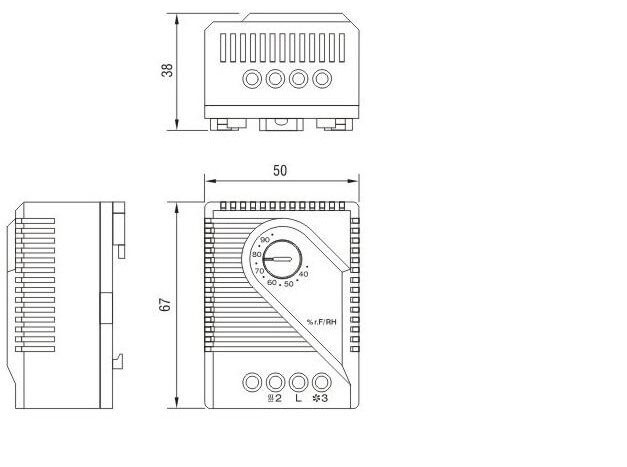

Dimensions | 67 x 50 x 38mm |
Weight | approx. 60g |
Fitting position | variable |
Operarting/Storage temperature | 0 to +60°C (+32 to +140°F) / -40 to +60°C (-40 to +140°F) |
Operating / Storage humidity | max. 90 % RH (non-condensing) |
Protection type | IP20 |
Approvals | UL File No. E164102 |
*at 50% RH | |
Art. No. | Setting range |
01220.0-00 | 35 to 95% RH |
