| PHOTOELECTRIC SENSOR | ||||
| Model | G50 | |||

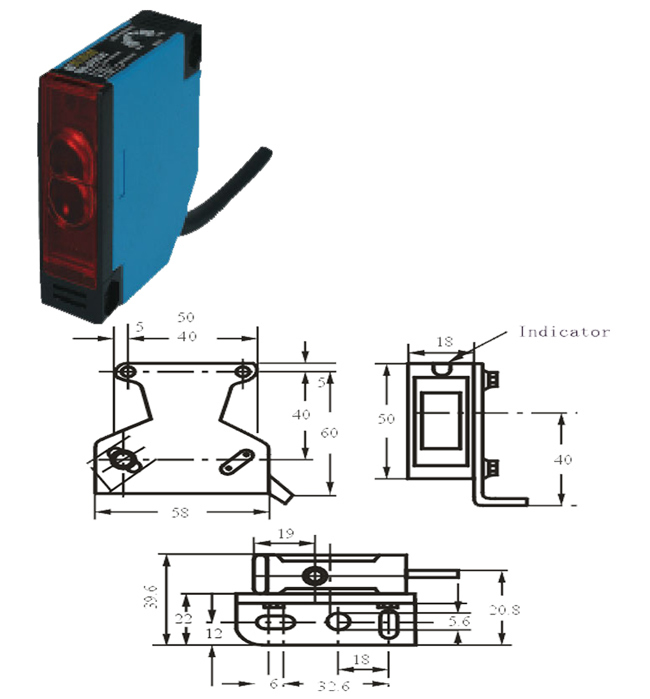

| Outward appearance illustration | ||||
| Overall dimension | ||||
| Diffuse | Detection distance | 30cm 50cm | ||
| DC10-30V | NPN | NO | G50-3A30NA | |
| NC | G50-3A30NB | |||
| NO+NC | G50-3A30NC | |||
| PNP | NO | G50-3A30PA | ||
| NC | G50-3A30PB | |||
| NO+NC | G50-3A30PC | |||
| AC90-250V | SCR Controllable silicon | NO | G50-2A30LA | |
| NC | ||||
| Relay output | ||||

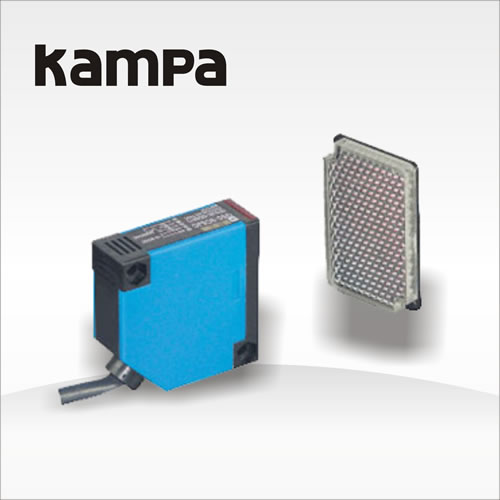

| Retroreflictive | Detection distance | 4m | ||
| DC10-30V | NPN | NO | G50-3B4NA | |
| NC | G50-3B4NB | |||
| NO+NC | G50-3B4NC | |||
| PNP | NO | G50-3B4PA | ||
| NC | G50-3B4PB | |||
| NO+NC | G50-3B4PC | |||
| AC90-250V | SCR Controllable silicon | NO | G50-2B4LA | |
| NC | ||||
| Relay output | ||||

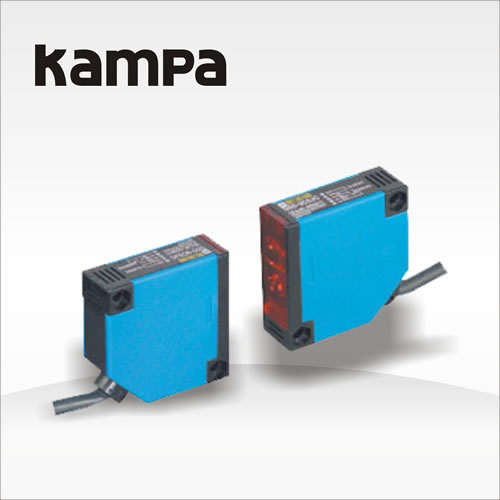

| Trough beam | Detection distance | 5m | ||
| DC10-30V | NPN | NO | G50-3C5NA | |
| NC | G50-3C5NB | |||
| NO+NC | G50-3C5NC | |||
| PNP | NO | G50-3C5PA | ||
| NC | G50-3C5PB | |||
| NO+NC | G50-3C5PC | |||
| AC90-250V | SCR Controllable silicon | NO | G50-2C5LA | |
| NC | ||||
| Relay output | ||||
| Control output | DC:200mA | |||
| Consumption current | DC<15mA | |||
| Response time | DC<2ms | |||
| Direction angle | 3C to 10C | |||
| Detected object | Transparent of opaque body | |||
| Working environment temperature | below 25C to 55C | |||
| INtensity of illumination of working environment | Incandescent lamp under 3000LX | |||
| Shell material | Metal | |||
| Protection grade | IP54 | |||
