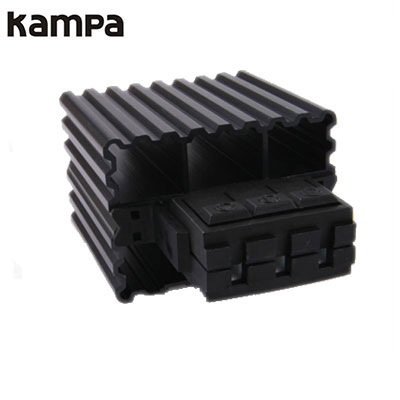

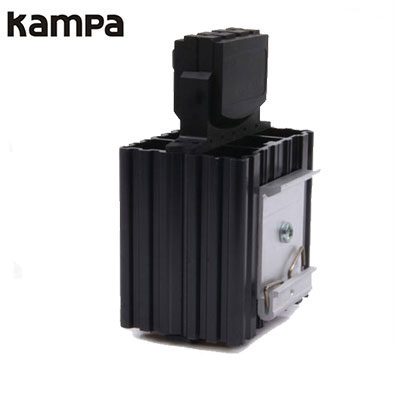

HG 140 15W To 45W

HG 140 15W To 45W

Features Pressure clamp connectors Dynamic heating up Wide voltage range Energy saving Clip fixing Quick installation Description Th

Tel : +86 577 62729846
Contacts : Wendy Dong
Product Details

Features
Pressure clamp connectors
Dynamic heating up
Wide voltage range
Energy saving
Clip fixing
Quick installation

Description
These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminum profile heater body design has a chimney effect and distributes the heat evenly. The pressure clamp connectors save time and simplify installation.

Technical Data

Operating voltage 120-240V AC/DC* (min. 110V, max. 265V)
Heating element PTC resistor - temperature limiting
Heater body extruded aluminum profile, anodized
Connection 3 pressure clamps for stranded wire 0.5-1.5mm2 (with wire end ferrule)
  and rigid wire 0.5- 2.5mm2
Connection casing plastic according to UL94 V-0, black
Mounting clip for 35mm DIN rail, EN 60715
Fitting position vertical airflow (air outlet up, connection on bottom)
Operating/Storage temperature -45 to +70°C (-49 to +158°F)
Operating/Storage humidity max. 90% RH (non-condensing)
Protection type/Protection class IP20 / I (earthed)
Note other voltages on request

Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

Art. No. Heating capacity* Inrush current max. Pre-fuse T (time-delay) Length (L) Weight (approx.)
14000.0-00 15W 1.5A 1A 65mm 0.3kg
14001.0-00 30W 3.0A 2.5A 65mm 0.3kg
14003.0-00 45W 3.5A 2.5A 65mm 0.3kg
14005.0-00 60W 2.5A 2.5A 140mm 0.4kg
14006.0-00 75W 4.0A 4A 140mm 0.5kg
14007.0-00 100W 4.5A 4A 140mm 0.5kg
14008.0-00 150W 9.0A 6.3A 220mm 0.7kg

*At 20°(68°F) ambient temperature
