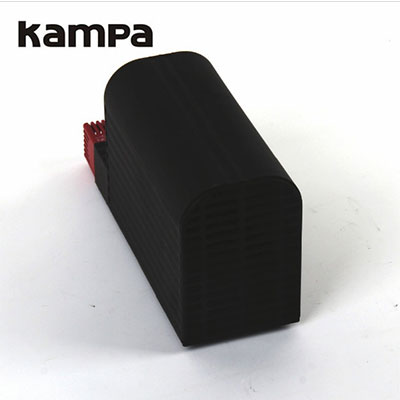

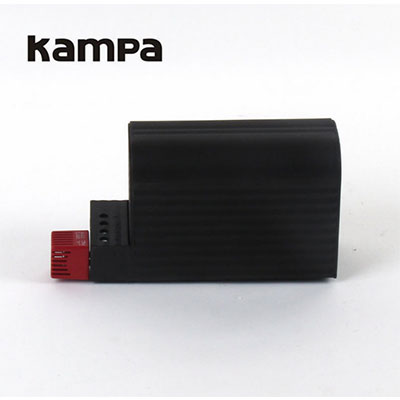

CSF060

CSF060

Low surface temperature Integrated thermostat Quick mounting due to clip fixing Double insulated(plastic) Wide voltage range Small siz

Tel : +86 577 62729846
Contacts : Wendy Dong
Product Details

Low surface temperature
Integrated thermostat
Quick mounting due to clip fixing
Double insulated(plastic)
Wide voltage range
 Small size


Touch-safe heater for the use in enclosures with electrical/ electronic components.
The design of the heater supports the natural convection which results in a high air-current of warm air.
The surface temperatures on the accessible side surfaces of he housing are kept down as a result of the heater design.
This model with plug-in thermostat does not require additional wiring.
The heaters are designed for perm-anent operation.
This heater is also available in a version without thermostat (CS 060).

Technical Data

Operating voltage 120-240V AC/DC* (min. 110V, max. 265V)
Heating capacity See table
Heater element PTC resistor-temperature limiting
Surface temperature <80 °C(176 °F),except upper protective grille
Connection 4-pole terminal 2.5mm2, torque 0.8Nm max.
Casing Plastic according to UL94-V-0, black
Mounting Clip for 35mm DIN rail, EN 50022
Fitting position Vertical
Operating/Storage temperature -20 to +70 °C (-4 to +158 °F) / -45 to +70 °C (-49 to +158 °F)
Protection type/Protection class IP20 / II (double insulated)
Accessories VDE+UL File No.E15057 (according to UL499 in combination with UL508A)
Note Other voltages on request

Operating with voltages below 140V AC/DC reduces heating performance by approx.10%
