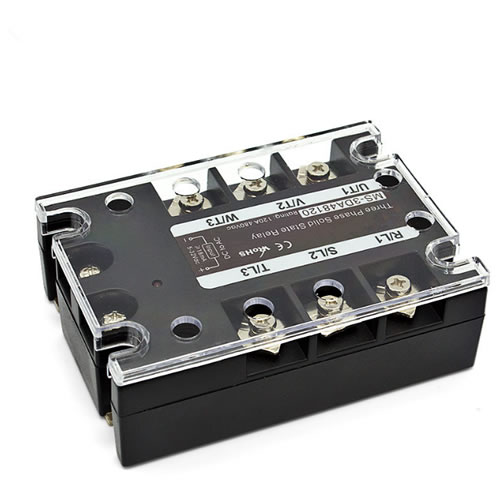

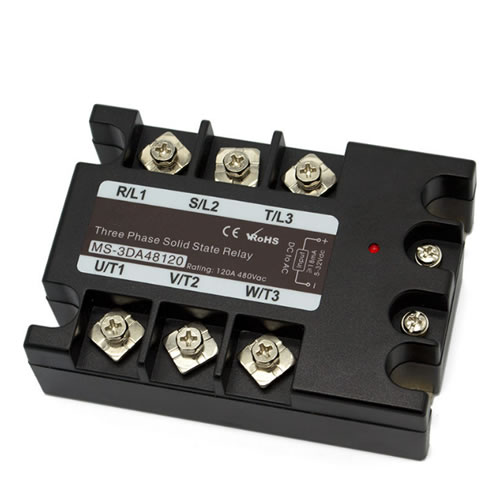

SSR-120DA
Loading Current : 120A
Loading Voltage : 480VAC
Control Voltage: 3-32VDC
Control Current : 10-68mA
On Voltage : ≤2V
Off Leakage Current : ≤10mA
On -off Time: ≤10mS
Dielectric Strength :2500VAC
Insulation Resistance: 1000MΩ/500VDC
Ambient Temperature: -30°c~+75°c
Mounting Methods: bolted
The working instructions : LED
