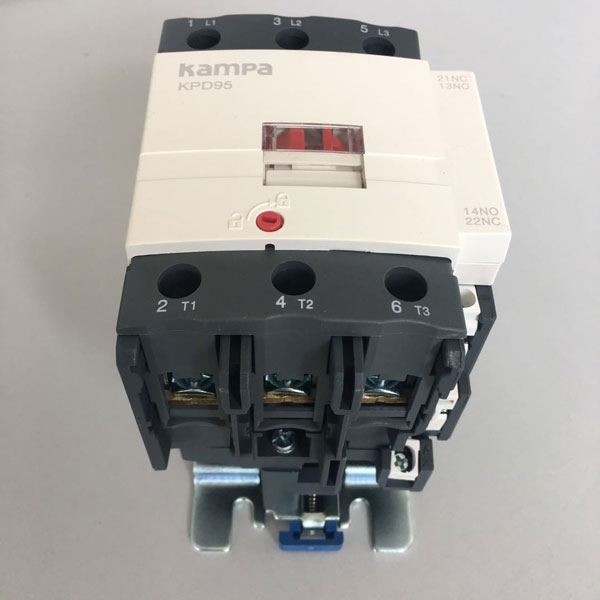

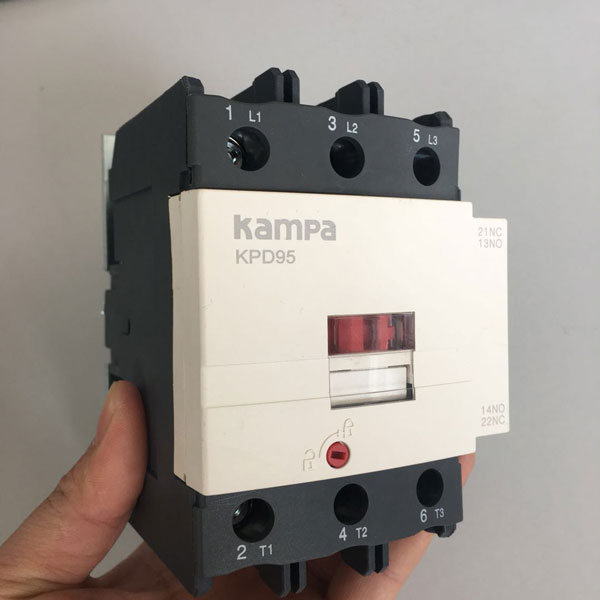

LC1D95 AC Contactors is suitable for using in the circuits up to the rated voltage 660v,AC 50hz or 60hz,rated current up to 95A,for making ,breaking frequently starting &machine-interlocking device etc,it becomes the dalay contactor,mechanical interlocking contactor,star-delta starter.with the thermal relay,it is combined into the electromagnetic starter.
LC1D95 AC Contactors is suitable for using in the circuits up to the rated voltage 660v,AC 50hz or 60hz,rated current up to 95A,for making ,breaking frequently starting &machine-interlocking device etc,it becomes the dalay contactor,mechanical interlocking contactor,star-delta starter.with the thermal relay,it is combined into the electromagnetic starter.
Specification
| Model | Rated working current (A) |
Rated heat current (A) |
AC3 capacity of three-phase squirrel-cage motor AC3(KW) | ||||||
| 220/230V | 380/400V | 415V | 440V | 500V | 600/690V | ||||
| AC3 | AC4 | KW | KW | KW | KW | KW | KW | ||
| LC1-D09 | 9 | 3.5 | 20 | 2.2 | 4 | 4 | 4 | 5.5 | 5.5 |
| LC1-D12 | 12 | 5 | 20 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 |
| LC1-D18 | 18 | 7.7 | 32 | 4 | 7.5 | 9 | 9 | 10 | 10 |
| LC1-D25 | 25 | 8.5 | 40 | 5.5 | 11 | 11 | 11 | 15 | 15 |
| LC1-D32 | 32 | 12 | 50 | 7.5 | 15 | 15 | 15 | 18.5 | 18.5 |
| LC1-D40 | 40 | 18.5 | 60 | 11 | 18.5 | 22 | 22 | 22 | 30 |
| LC1-D50 | 50 | 24 | 80 | 15 | 22 | 25 | 30 | 30 | 33 |
| LC1-D65 | 65 | 28 | 80 | 18.5 | 30 | 37 | 37 | 37 | 37 |
| LC1-D80 | 80 | 37 | 125 | 22 | 37 | 45 | 45 | 55 | 45 |
| LC1-D95 | 95 | 44 | 125 | 25 | 45 | 45 | 45 | 55 | 45 |
| Number of the contact | 3P+NO | ||||||||
| 3P+NC | |||||||||
| 3P+(NO+NC) | |||||||||
| Matched auxiliry contactor | LA1-DN02(2NC),LA1-DN11(1NO+1NC),LA1-DN20(2NO),LA1-DN22(2NO+2NC) | ||||||||
| LA1-DN40(4NO),LA1-DN04(4NC),LA1-DN13(1NO+3NC),LA1-DN31(3NO+1NC) | |||||||||
| Matched time delay auxiliary contact | Time delay after power on:LA2-DT0(0.1-3s),LA2-DT2(0.1-30s),LA2-DT4(10-180s) | ||||||||
| Time delay after power off:LA3-DR0(0.1-3s),LA3-DR2(0.1-30s),LA3-DR4(10-180s) | |||||||||
| External dimensions & Installation dimensions | |||||||||
