Application

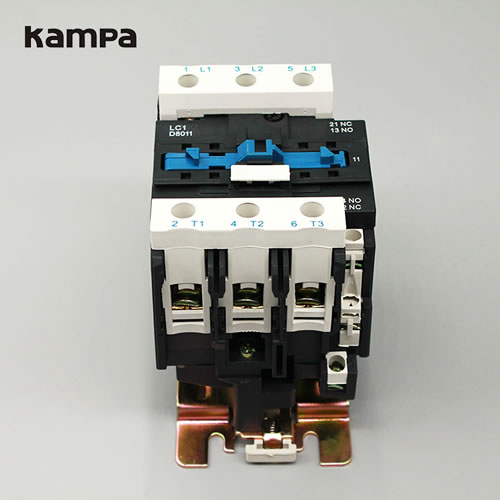

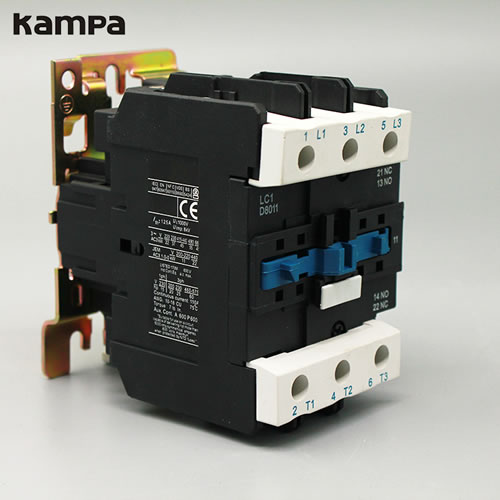

CJX2(LC1-D) series AC contactor is suitable for using in the circuit up to the rated voltage 660VAC 50Hz or 60Hz,rated current 95A,for making and breaking and frequent starting, controlling the AC motor. Combined with the auxiliary contact group,air delayer,machine interlocking device etc.It's combined into the delay contactor,mechanical interlocking contactor,stardelta starter.With the thermal relay,it's combined into the electromagnetic starter.
Specification
| Rated Insulation voltage(V) |
Rated heat current Ith(A) |
Rated working current 380V AC3(A) |
Control Power (kw) | Number of the contacts |
Weight (kg) |
|||||
| 220V | 380V | 415V | 440V | 660V | 1000V | |||||
| 660V | 25 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 3P+NO/3P+NC | 0.32 | |
| 25 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 3P+NO/3P+NC | 0.32 | ||
| 32 | 16 | 4 | 7.5 | 9 | 9 | 10 | 3P+NO | 0.35 | ||
| 32 | 16 | 4 | 7.5 | 9 | 9 | 10 | 3P+NC | 0.35 | ||
| 40 | 25 | 5.5 | 11 | 11 | 11 | 15 | 3P+NO/3P+NC | 0.51 | ||
| 50 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 3P+NO/3P+NC | 0.53 | ||
| 60 | 40 | 11 | 18.5 | 22 | 22 | 30 | 3P+NO+NC | 1.15 | ||
| 80 | 50 | 15 | 22 | 25 | 30 | 33 | 1.2 | |||
| 80 | 63 | 18.5 | 30 | 37 | 37 | 37 | 1.25 | |||
| 125 | 80 | 22 | 37 | 45 | 45 | 45 | 1.5 | |||
| 125 | 95 | 25 | 45 | 45 | 45 | 45 | 1.55 | |||
| 1000V | 200 | 115 | 30 | 55 | 59 | 59 | 80 | 65 | Can be installed three auxiliary contact group, nine pairs of contact combinations |
3 |
| 200 | 150 | 40 | 75 | 80 | 80 | 100 | 65 | 3 | ||
| 275 | 185 | 55 | 90 | 100 | 100 | 110 | 100 | 4.1 | ||
| 275 | 225 | 59 | 110 | 110 | 110 | 129 | 100 | 4.2 | ||
