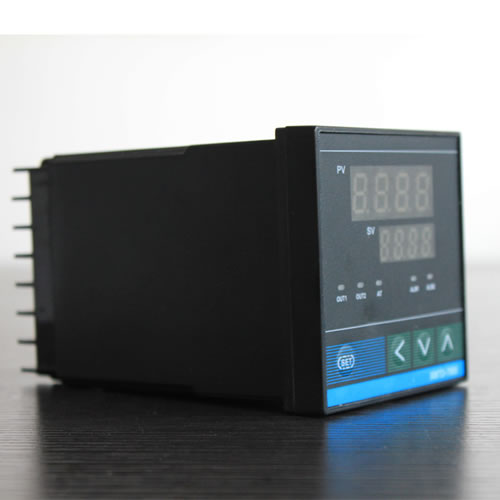

| Type | XMTG-7000 |
| Input Signal | thermocoupleK.E.J |
| resistancePt100,Cu50 | |
| Control way | two-level relay on-off control |
| PID adjust relay on-off control | |
| PID adjust and driver SSR | |
| voltage control | |
| Alarm Way | 1Z alarm relay contact output |
| 2Z alarm relay contact output | |
| Work power | AC220V±10%(50/60Hz) |
| Outline dimension | 48×48×107mm |
| Install dimension | 45×45mm |
| Mounting style | matching panel style |
| Speecial application | used to roaster,drying baker,over-temperature protect etc heating device |
