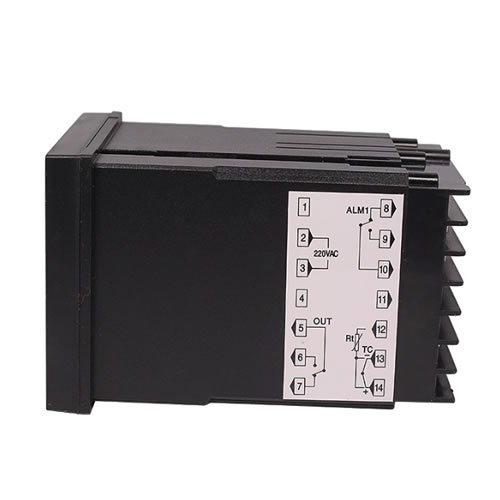

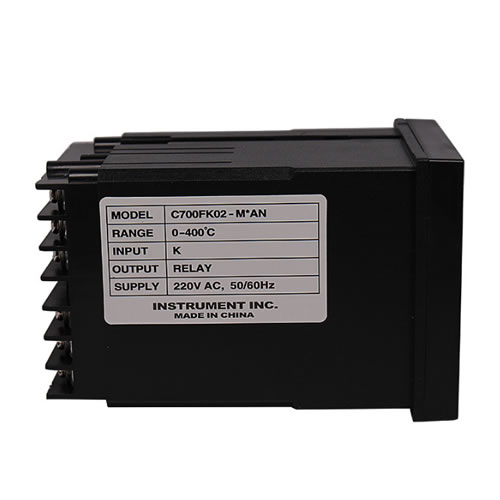

| Type | REX-C700 |
| Power Supply | AC220V,50-60Hz |
| Input | K,J,S,E or PT100 |
| Output | RELAY or SSR |
| Alarm | One |
| Range | 0-1300℃ |
| Accuracy of Measurement | ±0.5% |
| Compensating error of cold side | ±2℃(the software corrects the data for 0-50℃fluctuations in temperature ) |
| Resolution | 14Bit |
| Sampling Period | 0.5 Secretary |
| Control Mode | Adopt industrial and PID Parameters of Control System,Temperature Control,responsible faster,Start modulation smaller,accuracy higher than troditionalPID |
| Insulation resistance | >50MΩ(500VDC) |
| Insulation resistance | 1500V AC/min |
| Power Loss | <10VA |
| Outline Dimension | 72*72*111mm |
| Install Dimension | 67*67 |
| Operating temperature | 0-50℃ |
