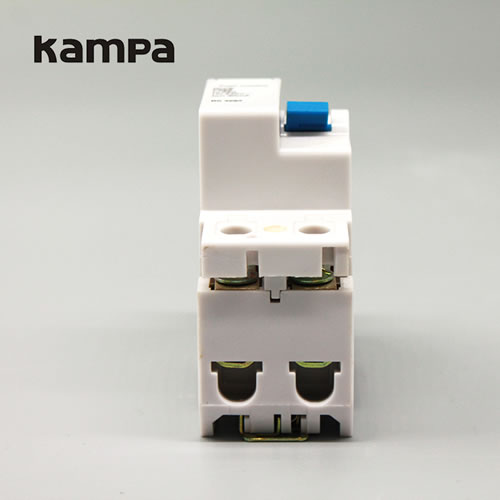

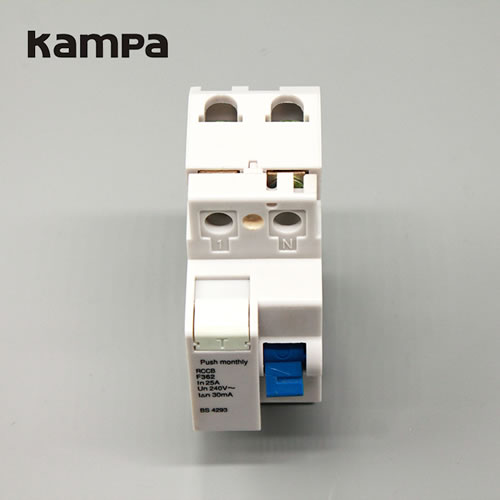

Residual Current Circuit Breakers F362 2P

Residual Current Circuit Breakers F362 2P

Application residual current circuit breaker provide the function of isolation switching and earth leakage protection of electrical circuit

Tel : +86 577 62729846
Contacts : Wendy Dong
Product Details

Application

residual current circuit breaker provide the function of isolation switching and earth leakage protection of electrical circuits. And also provice the indirect protection of the operator’s body against the dangerous effects of electric current and provide the protection of the fire caused by the electrical circuits fault.

1. Provides protection against earth fault/leakage current and function of isolation.
2. High short-circuit current withstand capacity.
3. Applicable to terminal and pin/fork type busbar connection.
4. Equipped with finger protected connection terminals.
5. Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity.
6. Independent of power supply and line voltage, and free from external interference, voltage fluctuation.

Specification

Item RCD
Model A,AC(Electro-magnetic type,electronic type)
Pole 2P,4P
Rated making and breaking capacity:630A Rated voltage: 240/415V AC
Rated frequency: 50/60Hz
Rated residual operating current 10mA 30ma 100A 300mA
Tripping duration instantaneous tripping 0.1s
Electro-mechanical endurance More than 4000 cycles
Standard IEC CE CB ISO9001 TUV
Rated current(A) 16,25,32,40,63,80,100
Installation 35MM DIN RAIL
