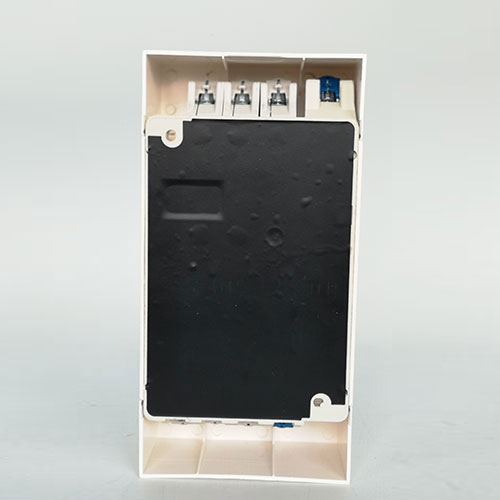

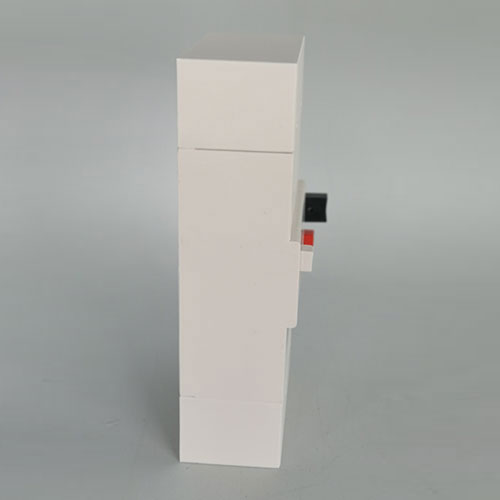

PG RCCB with adjustable ampere
PG series adjustable residual current circuit breaker(gardy rccb,gardy elcb)is suitable for AC 50/60Hz,230/400V circuit,prevents from overloading,short-circuit etc.On the occasion of shock hazard or earth leakage,it will trip immediately.At the same time,the rated current of overload protection can be adjustable.

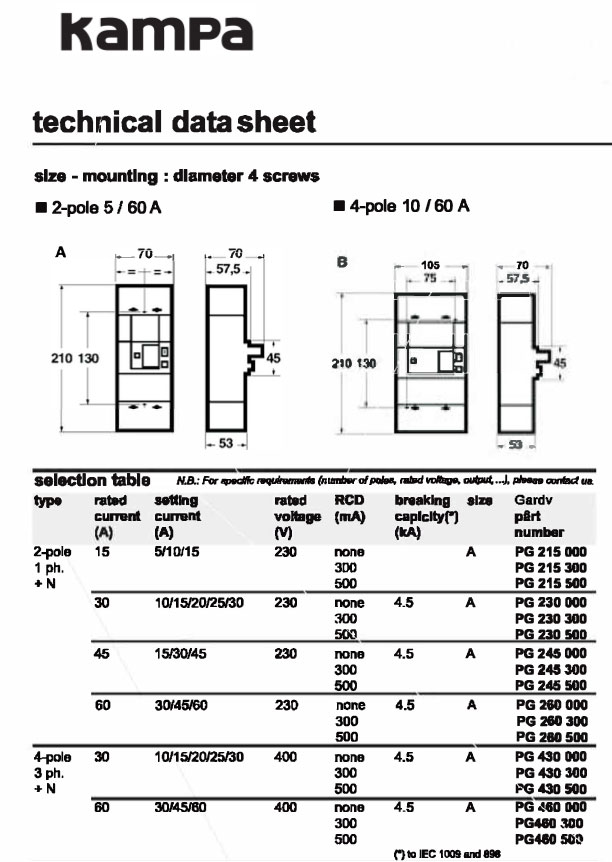

Technical Specifications
| TYPE | PG | |
| Poles | 2p | 4p |
| Rated Voltage (V) | 230V | 440V |
| Rated Current (A) | 5~15A(5.10.15A) | 5~15A(5.10.15A); 10~30A(10.15.20.25.30A) |
| 10~30A(10.20.30A) 30~60A（30.45.60A) |
30~60A(30.45.60A) | |
| Leakage operating current(mA) | 300mA | 500mA |
| Leakage non-operating current(mA) | 150mA | 250 |
| Standard | NFC61450 | |
