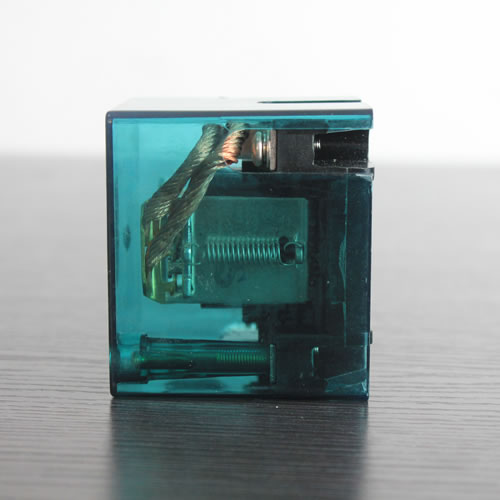

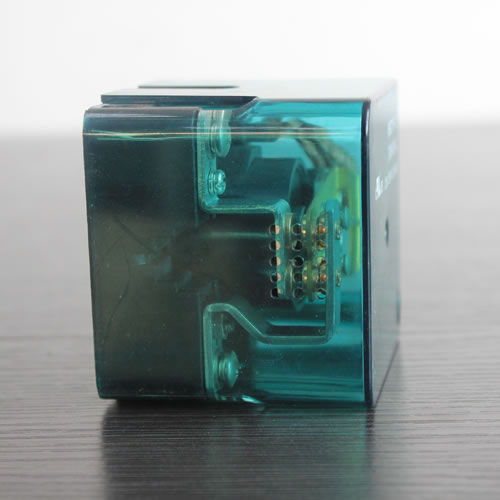

Power Relay JQX-62F

Power Relay JQX-62F

Appearance: 100A Contact Change-over capacity With opening and dust-proof type Dielectric strength(Between coil and contact): 2,500VAC Op

Tel : +86 577 62729846
Contacts : Wendy Dong
Product Details

Appearance:  100A Contact Change-over capacity With opening and dust-proof type

Dielectric strength(Between coil and contact): 2,500VAC

Operate/release time: 25ms/25ms

(min) Mechanical life: 100000h

(min) Electrical life: 5*10*4

Technique parameter

  Dimensions(mm)   68.2*62*84
  Contact form   2Z
  Contact capacity    120A,250VAC; 120A,30VAC
   Coil voltage   DC   6-220V
 AC   6-380V
  Coil power      DC≤2w,AC≤3.2VA
   Pick up    DC:≤75%,AC≤80%
   Drop-out    DC≥10%,AC≥30%
   Contact resistance    ≤50mΩ
   Insulation resistance    ≥100mΩ
   Service life   Electrical    10^5 times
  Mechanical    10^5 times
   Dielectric strength    Between open contacts    1500v rms
  Between coil & contacts   2500v rms
   Operation temperature    -40°c-+55°c
   Weight    About 340g
