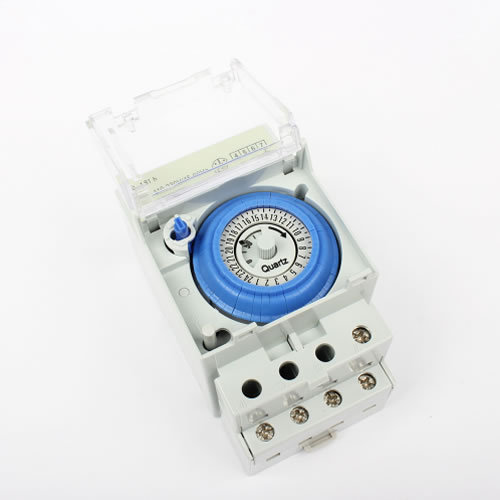

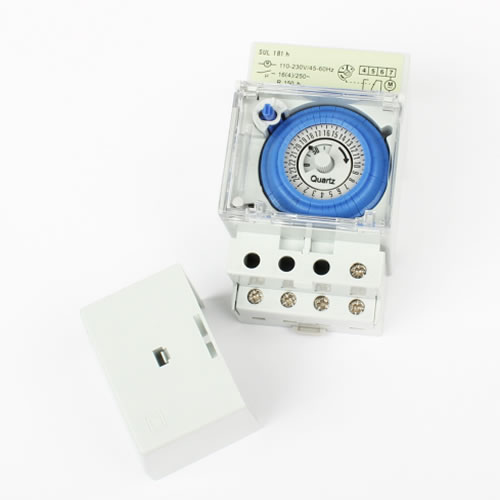

Time Switch SUL181h Description:
- Analogue time switch
- Daily program
- 1 channel
- With power reserve (NiMH rechargeable battery)
- 48 switching segments
- Shortest switching time: 30 minutes
- Screw terminals
- Switching preselection
- Permanent ON/OFF switch
- Switching status display
- Operating indication
- Simple summer/winter time correction
Technical Data:
| Operating voltage | 220VAC |
| Frequency | 50-60Hz |
| Width | 3 modules |
| Installation type | DIN-rail |
| Program | Daily program |
| Power reserve | 7 days |
| Max. switching capacity at 250 V AC, cos φ = 1 | 16 A |
| Max. switching capacity at 250 V AC, cos φ = 0.6 | 4 A |
| Shortest switching time | 30 min |
| Programmable every 30 min | 30 min |
| Time accuracy | ≤ ± 1 s/day(Quartz) |
| Power consumption | 1.5VA |
| Type of protection | IP 20 |
| Protection class | II in accordance with EN 60 730-1 |
| Ambient temperature | –20 °C ~ +50 °C |
