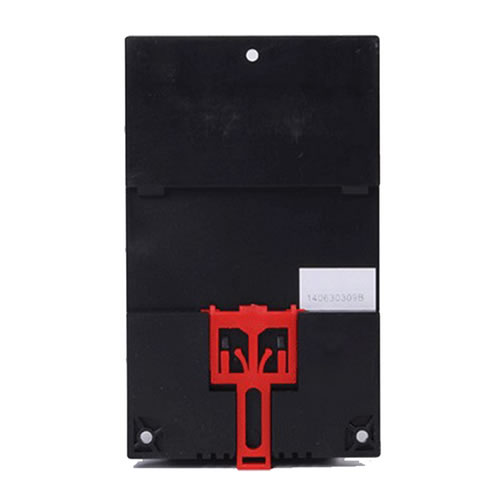

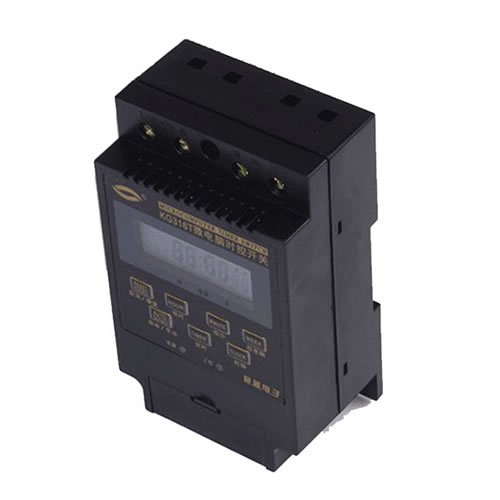

Digital Time Switch KG316T black

Digital Time Switch KG316T black

?Features 1- It widely applies to the time control of the equipments,streetlight,warehouse, farming, heating and TV. 2- The battery inside

Tel : +86 577 62729846
Contacts : Wendy Dong
Product Details

?Features

1- It widely applies to the time control of the equipments,streetlight,warehouse, farming, heating and TV.
2- The battery inside, of the industrial clall chips, is precisely control,highly against disturb

?Characteristics

1- Power Voltage 12VDC/50-60Hz +/-15%, other voltage could be made
2- Inside Battery 1.2VDC/40MAH ( It could work 90 days without battery)
3- Electricity Consumption Appr. 1.5VA
4- Output Control 25A,250VAC(resistance onload)
5- Time error less than 1 second per day
6- 17 ON OFF/18 ON OFF Per Day
7- Environment Temperature minus 25 degree until 60degree
8- Environment Humidity 45-85% RH
9- Mechanical Lifetime 3,000,000 times
10- Weight Appr.170g
11- Dimension 98*55*40mm
12- Installation with screw M3,3pcs
